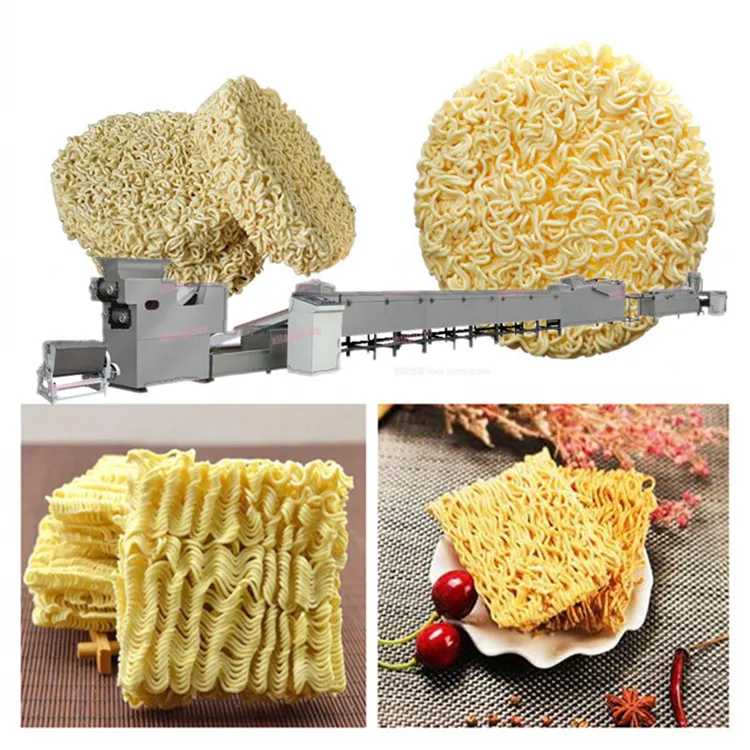

Customized Different Shape Instant Noodle Production Line Large Capacity Fried Instant Noodle Making Machine

Description

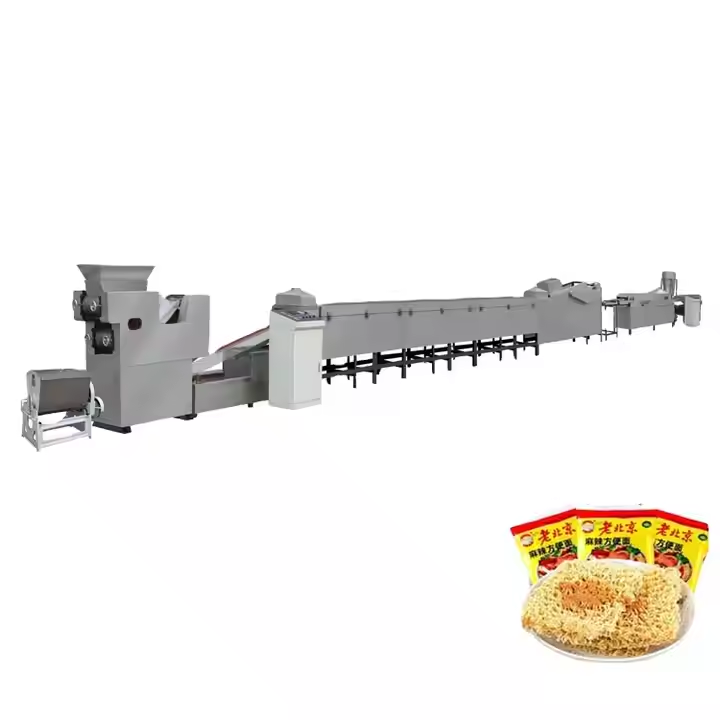

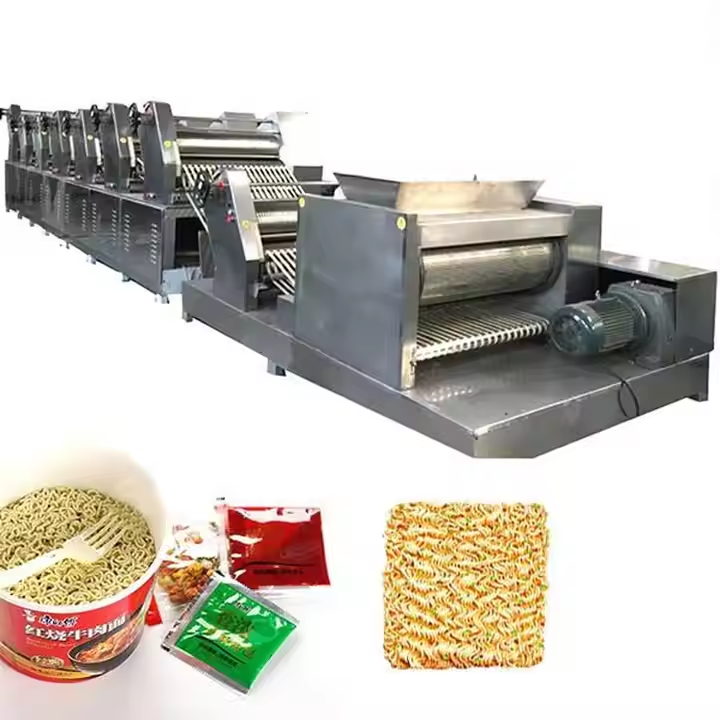

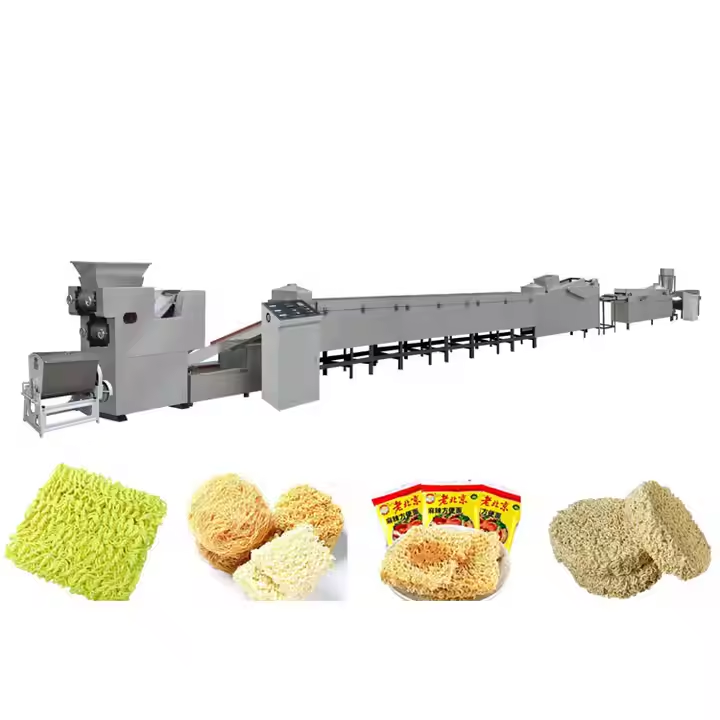

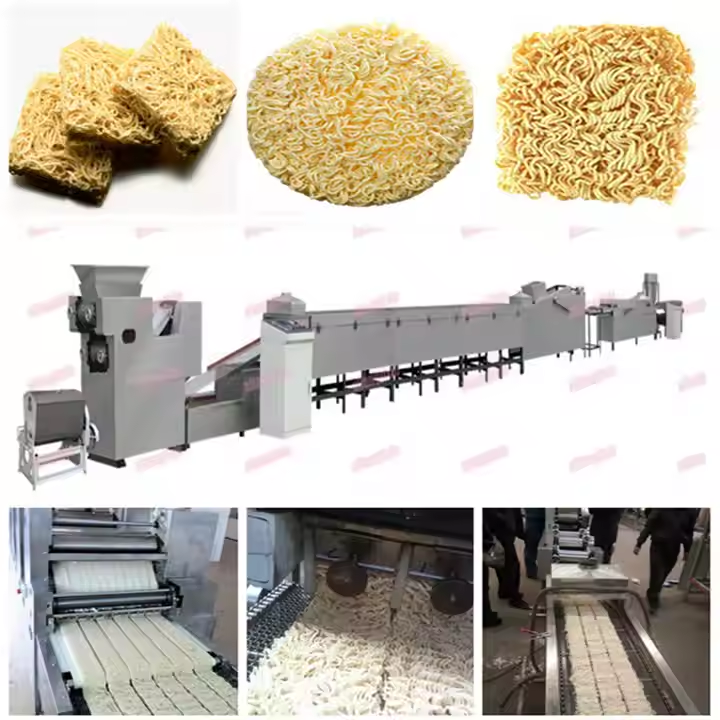

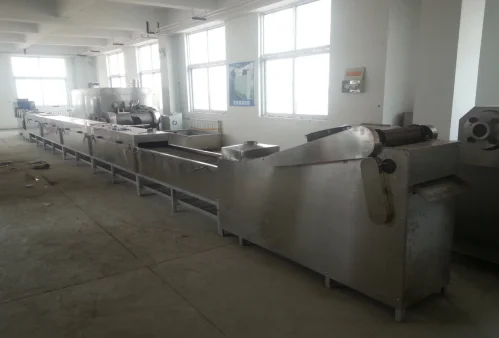

The fully automatic small instant noodle production line is a new generation of products with the characteristics

of miniaturized production developed and produced by our company on the basis of researching similar products

at home and abroad, combined with the needs of my country’s mass consumer market. It has perfect technology,

compact structure, novel design, stable and reliable performance. The production from flour to finished product

is automatically completed at one time, with high degree of automation, simple operation, moderate output, energy

saving, small footprint, and only one tenth of the investment of large-scale equipment. It has the characteristics of

less investment and quick results, especially suitable for small and medium-sized and individual businesses.

The corrugated instant noodles produced by this production line have a short rehydration time, good elasticity, gloss

and transparency, comparable to the large-scale equipment popular in the market.

The company is responsible for installing, debugging equipment, training personnel until the production of qualified

products (domestic), providing process formula, and providing ingredient manufacturers.

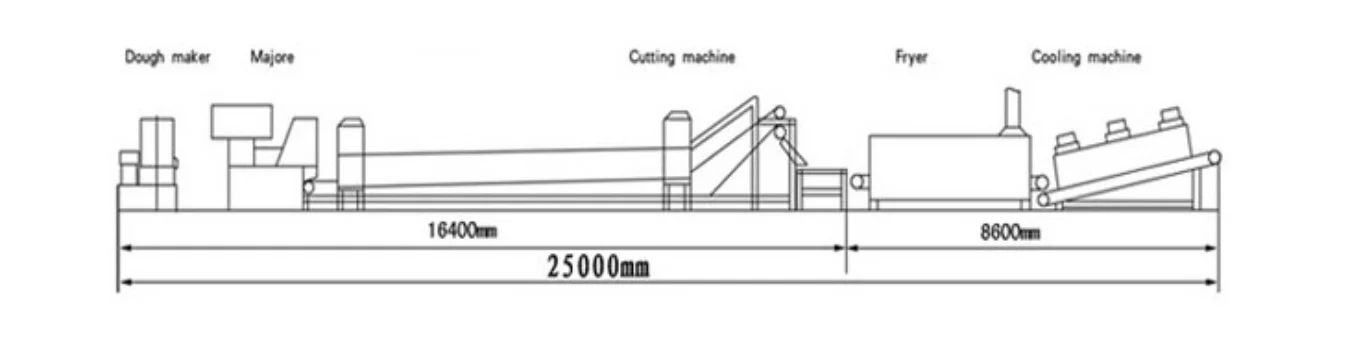

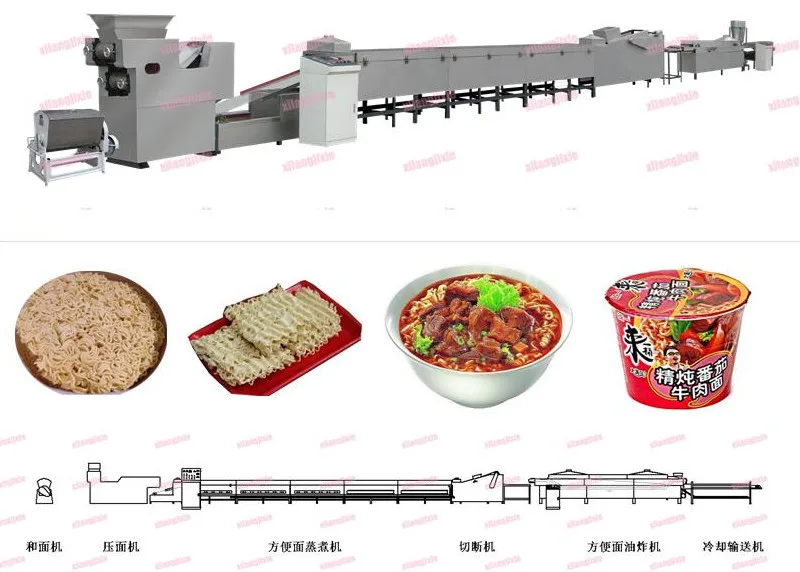

1. Processing flow: Dough Maker — Roller Pressing Machine — Bolling Machine

— Cutting Machine — Electric Fryer/ Steam Fryer — Cooling Machine

2. Machine Capacity: 12000 pcs/8h

3. Machine floating Voltage: Three phases: 380 V/50 Hz, Single phase: 220 V / 50 Hz.

we can make it according to customers’ Local voltage according to different countries.

4. Final products:  Instant Noodle, Cup Noodle, Barrel instant noodles, etc.

5. Machine material: Stainless steel 304 or as customer’s request

6. Raw material: Flour, Corn Flour etc.

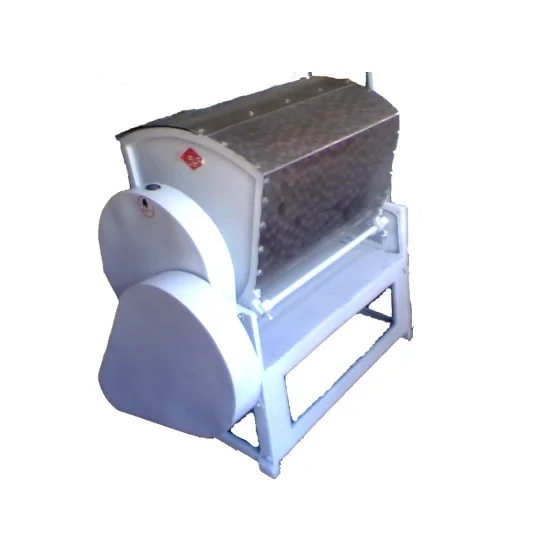

1. Dough mixer
(1) Capacity: 50kg per batch
(2)Stirring wings: four stirring wings
(3)Transmission motor: 3 kw
(4)Machine base: fixed barrel, motor, etc.,
(5)Switch: reverse cis switch, control the motor
(6)size: 1.1×0.85x1m

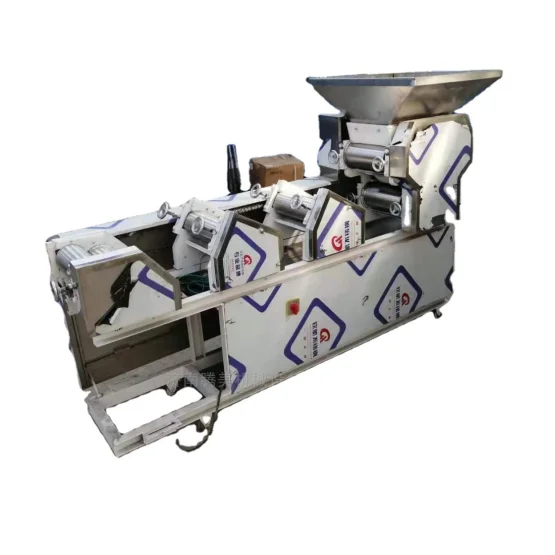

2. Shaper

(1) Forming roller: 5 sets rollers

(2) Size of roller : width 260mm, diameter: 140mm.

(3) Motor: 3KW

(4) There are 2 adjustment handles on each roller. The powdered flour is compounded

and extruded into a dough shape.  It can be adjusted to the required thickness according to needs.

3.Boiling machine

(1) Transmission motor 0.75kw.

(2) Heating method:

Electricity type: built-in electric heating tube, the working temperature is about 120 degrees,

a single section has 6 heating tubes, a total of 36, each heating tube is 3kw, total is around 110kw.

Control the heating tube to automatically reach the working temperature through the temperature control table.

Steam type:Steam heating type: built-in steam cooling pipe, five steam box pipes connected in series,

external steam pipe (external steam pipe parts are quoted separately according to the actual pipe fitting requirements)

(3) Size: 15000*500*900mm. Material: stainless steel.

(4) Temperature measuring device: 1 thermocouple for measuring temperature and sensing temperature.

(5) Conveyor belt: length: 15000mm width: 380mm, height: 1100mm

(6) Transmission mode: chain transmission. Material: stainless steel mesh .

3.1 Cutting Machine which working together with the boiling machine

(1) Cooling fan: 0.2kw, function: to cool the noodles cooked in the steamer for cutting

(2) Cutting knife: a cutting knife with a width of 360mm. Function: Cut the noodles cooked in the steamer

according to the length requirements, and the length can be adjusted.

(3) Dimensions: 1900*500*1300mm .

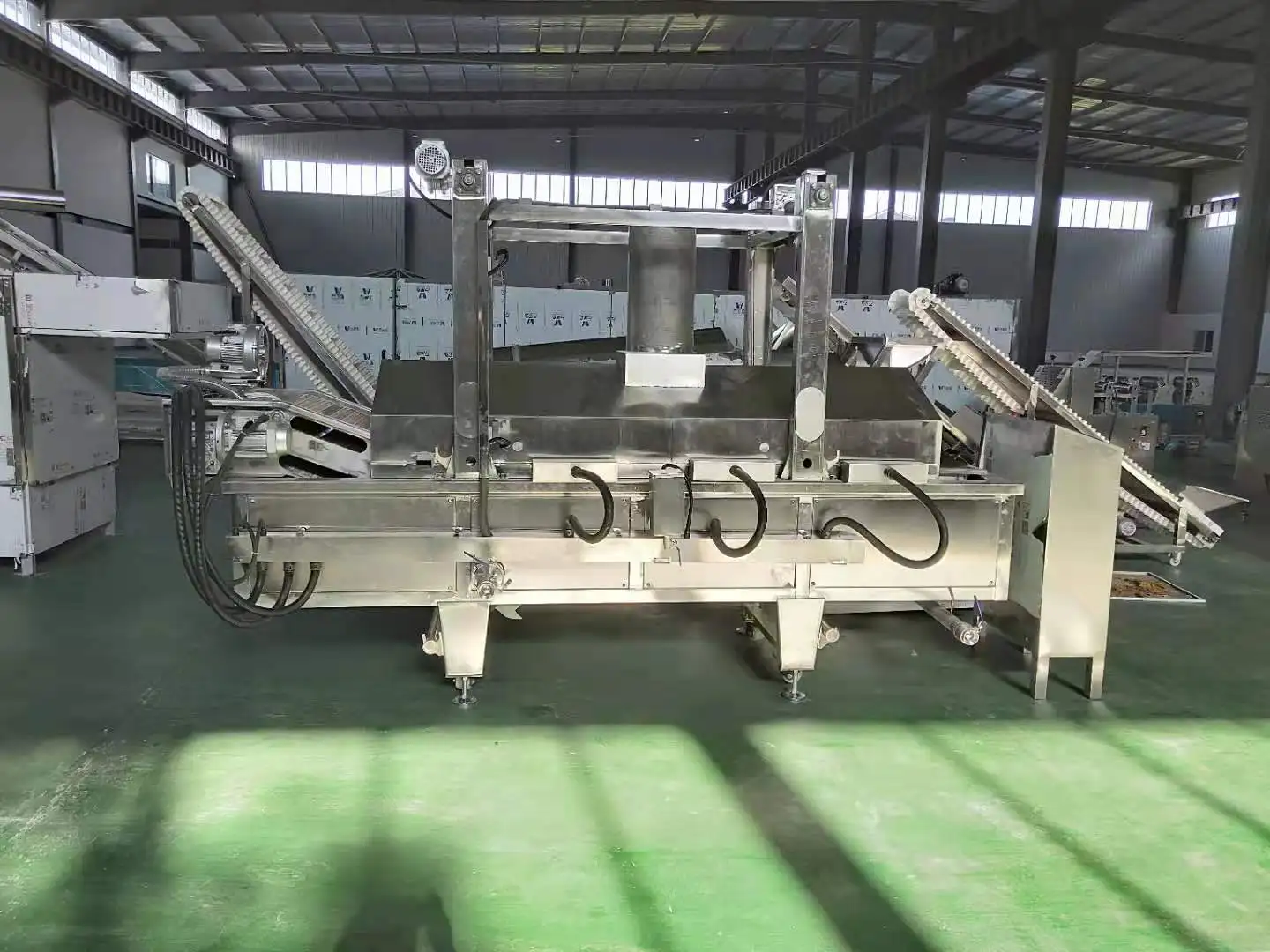

4.Fryer

(1) Fryer body: Size: 5500mm*870mm*1200mm

(2) Material: Stainless steel

(3) Combined conveyor belt: the size of the forming box is 110*90*30mm. It can also be customized

according to customer requirements. Instant noodle shape: Square block, round noodle block

(4) Temperature measuring device: 1 temperature measuring point, used to measure the temperature

and sense the actual temperature of the oil temperature.

(5) Electrical control cabinet: built-in inverter, AC contactor, air switch and other electrical components.

(6) Filtration device: double-layer filtration of coarse filter. 3kw circulating filter pump. For filtering

convenient fabric scraps and crumbs from deep fryers.

(7) Heating method:

Electricity type:Built-in electric heating tube, a total of 18, a single 4kw, a total of 72kw.

The working temperature is 180 ° through the temperature control table to control the heating tube

to automatically reach the working temperature.

Steam type: Steam heat exchanger,the heat exchanger needs to be connected to the outside of the

cooking oil using steam (the connection part between the heat exchanger and the boiler steam pipeline

needs to be provided by the customer, and our technical guide for installation)

6.Cooling part:

(1) . Material: stainless steel

(2)  Conveyor belt: 3000*400mm*600mm

(3)  Cooling device: 4 cooling fans, power: 0.2kw/pc.

(4)  Function: The fried noodles are quickly cooled to a temperature that can be touched by humans, and subsequent manual operation.
